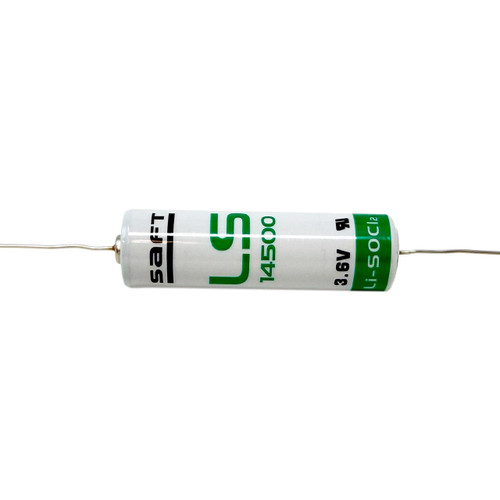

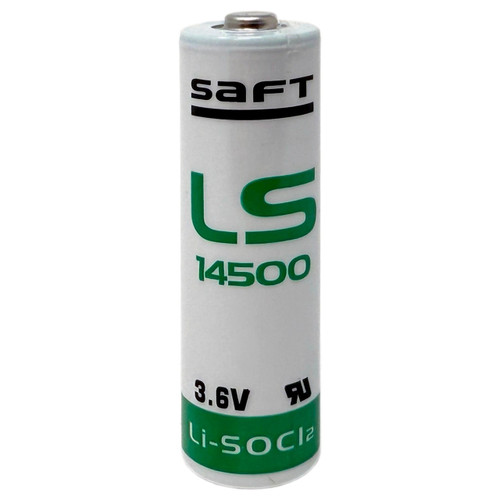

SAFT LS14500 AA 3.6 Volt Lithium Battery (2600 mAh)

Specifications

• Voltage: 3.6 Volt
• Capacity: 2600 mAh
• Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
• Brand: Saft
• Concentric (“bobbin”) electrodes
• Hermetic glass-to-metal sealing.
• Non-flammable electrolyte.
• UL Approved --- BBCV2.MH30127

Electrical Characteristics

• Nominal Capacity: 2.6Ah (2600 mAh)
• Open Circuit Voltage: (at +20C +68F) 3.66V
• Nominal Voltage: (at 1mA +20C +68F) 3.6V
• Pulse Capability: Typically up to 200 mA
• Diameter (max): 14.5 mm (0.55 in)
• Height (max): 50.5 mm (2 in)
• Typical Weight: 19 g (0.622 oz)

Key Features

• High operating voltage, stable during most of the application lifetime
• Some of the highest nominal capacities on the market today
• Excellent reliability over extended operating life
• Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
• Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
• Excellent resistance to humid environments
• Low magnetic signature
• Good resistance to passivation
• Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
• Less than 1% capacity loss during storage at ambient temperature before use
• ½ AA, AA and A cell models non-restricted to transport
• Up to 25 years of mass production experience
• Excellent safety records
• Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety standard
• Compliance with the European directive RoHS

Equivalent Batteries

• Tadiran TL-5903, Tadiran TL-2100, Tadiran TL-4903, Tadiran TL-5104,
• Saft LS-14500, Saft LS-14500C,
• Sonnenschein SL-360/S, Sonnenschein SL-760/S
• Maxell ER6S-TC, Minamoto ER14505, Xeno XL-060F, XL-060F, SB-AA11, PT-2100
• LAA, ER6, VL-AA, TL5104, TL2100, T06/41, T06/51, LS6, 3B940, LTC17C, LTC-17C, ER6AA, ER6H, LST14500, Taclane Battery

⚠️  Warning

• This battery is not rechargeable. Do not try to recharge.
• The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
• Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need or consult ABLE.
• Don't use different models of battery in series.
• Soldering the tab should be finished in few seconds.
• Do not use if the battery casing was mangled
