Understanding Different Types of Power Supplies: A Comprehensive Guide

Introduction: Power supplies play a crucial role in providing electrical power to various electronic devices and equipment, ensuring their proper operation and functionality. From small household appliances to complex industrial machinery, power supplies come in different types and configurations to meet specific voltage, current, and form factor requirements.

12 Volt Switching Power Supply (9 AMP):
Input: The 12 Volt Switching Power Supply operates with an input voltage of 100-120VAC/200-240VAC at a frequency of 50 to 60Hz and consumes a maximum current of 3.0A/1.5A.
Features: This power supply, branded by Symbol Technologies, is designed for use with various devices, including charging batteries, powering test bench equipment, ham radio gear, marine gear, and 12V devices.
Specifications: It offers a high-quality industrial-grade construction, with UL/CSA (Level 3) approval and a shockproof and waterproof housing. It includes a built-in cooling fan and output to a Molex connector.

16 Volt DC Switching Set Top Power Supply (2.5 AMP):
Input: The 16 Volt DC Switching Set Top Power Supply accepts an input voltage of 115/230VAC at a frequency of 47-63Hz.
Features: This power supply, manufactured by Unisys, features automatic line switching and UL/CE/GS approval. It is compact and lightweight, with dimensions of 5"L x 1-3/4"H x 3"W.
Specifications: It provides a stable output voltage of 16 volts, suitable for various electronic devices and equipment. The output is fed to a side-mounted jack that accepts a 6.3mm / 3.0mm barrel jack.

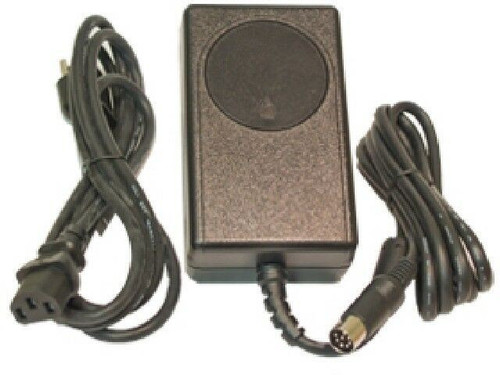

12 V DC 6.67 Amp Laptop Style Switch Mode DC Power Supply:
Input: The Laptop Style Switch Mode DC Power Supply operates with an input voltage range of 100 - 250VAC at a frequency of 50 - 60Hz.
Features: Manufactured by Ault, this power supply is CE compliant and features a compact design. It comes with a built-in 8-pin DIN connector for easy connection to compatible devices.
Specifications: The output cable of the power supply is terminated in an 8-pin DIN connector, allowing for compatibility with various devices. It includes a 6" black IEC line cord for convenience.

19 Volt DC 3.15 AMP Switching Set Top Power Supply:
Input: The 19 Volt DC 3.15 AMP Switching Set Top Power Supply accepts input voltages ranging from 100-240VAC at a frequency of 50-60Hz.
Features: This power supply, branded by Sunny, is UL/CE/LPS/TUV/GS approved and features a compact design. It comes with a filtered barrel jack with a center pin for output connection.
Specifications: The output voltage of the power supply is 19 volts, making it suitable for powering various electronic devices, including Sony laptop computers. The output cable can be modified for use with other types of connectors.

Power supplies are essential components in the world of electronics, providing the necessary electrical power for the operation of various devices and equipment. Understanding the different types of power supplies, such as the 12 Volt Switching Power Supply, 16 Volt DC Switching Set Top Power Supply, 12 V DC 6.67 Amp Laptop Style Switch Mode DC Power Supply, and the 19 Volt DC 3.15 AMP Switching Set Top Power Supply, allows users to select the most suitable option for their specific needs and applications. Whether for consumer electronics, industrial machinery, or telecommunications equipment, choosing the right power supply ensures reliable and efficient operation of electronic devices.
