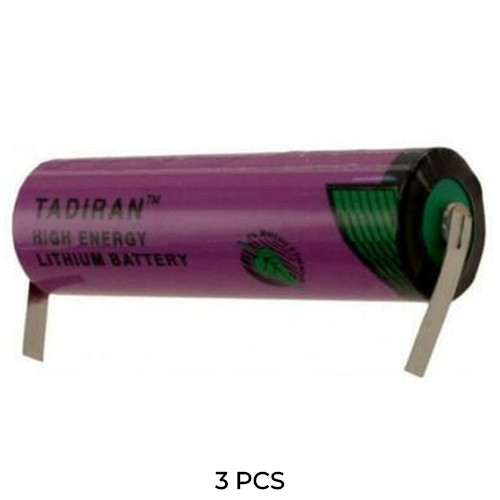

Tadiran TL-5903/T 3.6V AA 2.4 Ah Lithium Battery w/ Tabs (ER14505)

Tadiran TL-5903/T 3.6V AA 2.4 Ah Lithium Battery w/ Tabs (ER14505)

SKU: 70146

Tadiran

$10.19
(No reviews yet) Write a Review
Adding to cart… The item has been added

Compatible Products

Qty. Price
Buy 1 - 5 $and pay only 10.19 each
Buy 6 - 12 $and pay only 9.89 each
Buy 13 - 24 $and pay only 9.69 each
Buy 25 - 49 $and pay only 9.49 each
Buy 50 - 98 $and pay only 9.19 each
Buy 99 - 196 $and pay only 8.99 each
Buy 197 or above call for pricing
Description

Specifications

  • Voltage: 3.6 Volt
  • Capacity: 2.4 Ah
  • Size: AA
  • Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
  • Brand: Tadiran
  • Termination Style: Spot welded tabs on each end.
  • Shelf Life: 10+ Years
  • Maximum Recomended Continuous Current: 100 mA
  • Maximum Pulse Current Capability: 200 mA
  • Diameter (max): 14.5 mm (0.57 in)
  • Height (max): 50.5 mm (1.99 in)
  • Typical Weight: 18g (0.64 oz)

Features

  • High operating voltage, stable during most of the application lifetime
  • Some of the highest nominal capacities on the market today
  • Excellent reliability over extended operating life
  • Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
  • Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
  • Excellent resistance to humid environments
  • Low magnetic signature
  • Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
  • Less than 1% capacity loss during storage at ambient temperature before use

Compatible With

  • Tadiran TL-2100
  • Tadiran TL-4903
  • Tadiran TL-5104
  • Saft LS-14500
  • Saft LS-14500C
  • Saft LS33600
  • Sonnenschein SL-360/S
  • Sonnenschein SL-760/S
  • Maxell ER6S-TC
  • Minamoto ER14505
  • Xeno XL-060F
  • ER6
  • XL-060F
  • SB-AA11
  • PT-2100

Warning

  • This battery is not rechargeable. Do not try to recharge.
  • The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated.
  • Don't use different models of battery in series.
  • Soldering the tab should be finished in few seconds.
  • Do not use if the battery casing was mangled

TADIRAN TL-5903/T 3.6V AA 2.4 AH LITHIUM BATTERY W/ TABS (ER14505)


Reliable Power Source: Tadiran TL-5903/T 3.6V AA 2.4 Ah Lithium Battery with Tabs



The Tadiran TL-5903/T Lithium Battery with Tabs is a high-performance energy solution engineered to meet the demands of various electronic devices. With its impressive capacity, extended shelf life, and exceptional reliability, this battery is trusted by professionals across industries.



Key Specifications:

Voltage: 3.6 Volt
Capacity: 2.4 Ah
Size: AA
Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
Brand: Tadiran
Termination Style: Spot welded tabs on each end
Shelf Life: 10+ Years
Maximum Recommended Continuous Current: 100 mA
Maximum Pulse Current Capability: 200 mA
Diameter (max): 14.5 mm (0.57 in)
Height (max): 50.5 mm (1.99 in)
Typical Weight: 18g (0.64 oz)


Features:

High Capacity: With a capacity of 2.4 Ah, the TL-5903/T offers ample power to support various electronic devices, ensuring long-lasting performance.
Reliability: Tadiran batteries are known for their exceptional reliability, making them suitable for critical applications where consistent performance is essential.
Wide Operating Temperature Range: From extreme cold to high heat, this battery operates reliably in temperatures ranging from -60°C to +85°C (-76°F to +185°F), making it versatile for use in diverse environments.
Low Self-Discharge Rate: The battery maintains a low self-discharge rate of less than 1% after one year of storage at +20°C, ensuring it remains ready for use when needed.
Excellent Resistance: It exhibits outstanding resistance to humid environments, ensuring consistent performance even in challenging conditions. Additionally, its low magnetic signature makes it suitable for sensitive electronic equipment.
Safe and Durable: The TL-5903/T features a non-flammable, inorganic electrolyte, enhancing safety during use. It undergoes rigorous testing to ensure it meets the highest standards of quality and durability.


Applications: The TL-5903/T Lithium Battery with Tabs finds application in various devices, including:

Remote monitoring systems
Industrial sensors
Medical devices
Security systems
Emergency transmitters
And more


The Tadiran TL-5903/T Lithium Battery with Tabs is a reliable, high-capacity power source suitable for a wide range of applications. Its exceptional reliability, longevity, and performance make it a preferred choice for professionals seeking dependable energy solutions.
