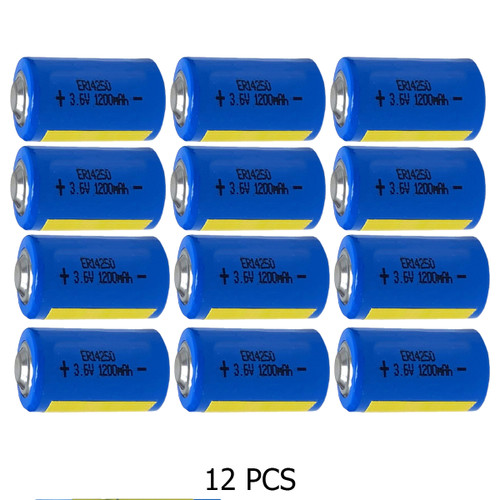

12-Pack ER14250 (LS14250) 1/2 AA 3.6 Volt 1200 mAh Primary Lithium Batteries

12-Pack ER14250 (LS14250) 1/2 AA 3.6 Volt 1200 mAh Primary Lithium Batteries

SKU: 68064

Power Portable

$54.99
(No reviews yet) Write a Review
Adding to cart… The item has been added

Compatible Products

Description

Specifications

  • Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
  • Nominal Capacity: 1200 mAh
  • Open Circuit Voltage: 3.66 Volt (at +20C +68F)
  • Nominal Voltage: 3.6 Volt (at 1mA +20C +68F)
  • Storage Temperature: +30C +86 F max (recommended)
  • Brand: Power Portable
  • Operating Temperature: -55C / +85C
  • Diameter (max): 14.5 mm (0.55")
  • Height (max): 25.25 mm (1")
  • Typical Weight: 12 g (0.4 oz)
  • Quantity:  12 pcs

Main applications

  • Backup power for circuit board
  • General purpose; camera/electronic cells
  • Medical equipment; military/aerospace
  • Telecommunications; water/electricity meter
  • LED lighting applications

Also known as

  • Tadiran TL-5902, TL-2150, TL-5151, TL-5902, TL-5101, TL-5111, Saft LS-14250, LS-14250c, Toshiba ER3v, Sonnenschein SL-350/S, SL-750/S, SL-150/S, pmd 14250, sx 14250, tt 14250, AMD 14250, tx 14250, ca 14250, alpha 14250, km 14250, BM 14250, IP 14250, ex 14250, qm 14250, gx 14250, ww 14250, dx 14250, sm 14250, bk 14250

Warning

  • This battery is not rechargeable. Do not try to recharge.
  • The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
  • Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need
  • Soldering the tab should be finished in few seconds
  • Do not use if the battery casing was mangled
  •
  • The manufactured date appears on the battery. The battery has a shelf life of 7 - 10 years.

12-PACK ER14250 (LS14250) 1/2 AA 3.6 VOLT 1200 MAH PRIMARY LITHIUM BATTERIES


Power up your devices with confidence using the Power Portable ER14250 (LS14250) 1/2 AA 3.6V Lithium Batteries. This pack of 12 high-performance batteries offers reliable power for a variety of applications, from medical equipment to telecommunications and beyond.



Technical Specifications:

Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
Nominal Capacity: 1200 mAh
Open Circuit Voltage: 3.66 Volt (at +20°C / +68°F)
Nominal Voltage: 3.6 Volt (at 1mA +20°C / +68°F)
Storage Temperature: +30°C / +86°F max (recommended)
Operating Temperature: -55°C to +85°C
Diameter (max): 14.5 mm (0.55 inches)
Height (max): 25.25 mm (1 inch)
Typical Weight: 12 g (0.4 oz)
Brand: Power Portable
Quantity: 12 pcs


Key Features:

Reliable Performance: Built with lithium thionyl chloride chemistry, these batteries provide reliable power for your devices, ensuring consistent performance over time.
Wide Temperature Range: With an operating temperature range of -55°C to +85°C, these batteries perform reliably even in extreme environmental conditions.
Long Shelf Life: Featuring a low self-discharge rate, these batteries have a long shelf life, making them ideal for backup power applications.
Versatile Applications: Suitable for a wide range of applications including backup power for circuit boards, camera and electronic cells, medical equipment, military/aerospace, telecommunications, water/electricity meters, and LED lighting applications.
Compact and Lightweight: With a compact size and lightweight design, these batteries are easy to install and transport, making them convenient for various devices and equipment.
Compatibility: Compatible with a wide range of devices including Tadiran TL-5902, TL-2150, TL-5151, TL-5902, TL-5101, TL-5111, Saft LS-14250, LS-14250c, Toshiba ER3v, Sonnenschein SL-350/S, SL-750/S, SL-150/S, and many more.



For reliable power in a variety of applications, choose the Power Portable ER14250 (LS14250) 1/2 AA 3.6V Lithium Batteries. With their high performance, wide compatibility, and long shelf life, these batteries are the ideal choice for powering your devices with confidence.
