Description

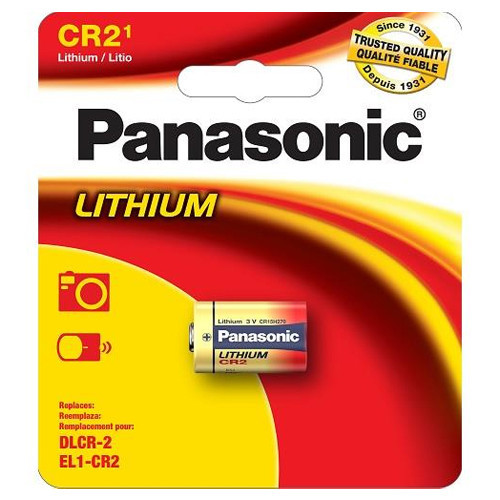

The CR2 Panasonic Photo Lithium 3 Volt Camera Battery is a high-performance primary lithium battery designed to provide reliable power for compatible photographic equipment, digital cameras, film cameras, and specialized electronic devices requiring a CR2 lithium battery. Manufactured by Panasonic, this battery features lithium manganese dioxide (Li-MnO2) chemistry, a nominal voltage of 3.0 volts, and a rated capacity of 850mAh (0.85Ah). Its lithium chemistry provides dependable power delivery for equipment requiring a compact, high-energy primary battery, making it suitable for compatible photographic applications and other electronic equipment designed for CR2 batteries.

Designed in the compact CR2 cylindrical battery format, this Panasonic Photo Lithium battery measures 27.0mm (1.06 inches) in length and 15.6mm (0.61 inches) in diameter. It features a button-top terminal configuration, with a raised positive terminal and a flat negative terminal, for compatible battery compartments. Panasonic's lithium manganese dioxide technology provides excellent high-drain performance, stable power delivery, and reliable operation in demanding applications. Its compact construction makes it suitable for compatible cameras, photographic accessories, portable lighting equipment, security devices, and specialized electronic instruments. The battery offers a shelf life of 10 years under appropriate storage conditions and is designed for single-use operation without charging or maintenance.

The Panasonic CR2 Photo Lithium battery is intended for equipment specifically designed to operate with primary 3V CR2 lithium batteries. Its compact cylindrical format and standard CR2 dimensions allow it to replace compatible primary CR2 batteries with matching electrical and physical specifications. However, it must not be confused with rechargeable RCR2 lithium-ion batteries, which may have higher operating voltages and different charging requirements. This Panasonic CR2 battery is non-rechargeable and must never be placed in a battery charger. Always confirm the equipment manufacturer's battery size, chemistry, voltage, and terminal requirements before installation. Each purchase includes one Panasonic CR2 Photo Lithium 3 Volt Camera Battery.

Specifications

Brand:	Panasonic
Product Name:	CR2 Panasonic Photo Lithium 3 Volt Camera Battery
Model Number:	CR2
Battery Size:	CR2
IEC Designation:	CR15H270
ANSI Designation:	5046LC
Battery Type:	Primary Lithium Cylindrical Battery
Chemistry:	Lithium manganese dioxide (Li-MnO2), primary, non-rechargeable
Voltage:	3.0 V
Rated Capacity:	850 mAh (0.85 Ah)
Battery Format:	CR2 Cylindrical Cell
Dimensions:	27.0 × 15.6 mm (1.06 × 0.61 in), length × diameter
Terminal:	Button top
Weight:	11.0 g (0.39 oz)
Continuous Drain:	20 mA
Operating Temperature:	-40 °C to +70 °C
Shelf Life:	10 years
Rechargeable:	No
Primary Applications:	Compatible Cameras, Photographic Equipment, Portable Lighting, Security Equipment
Battery Quantity:	1 Battery
Packaging:	Single Panasonic CR2 Photo Lithium Battery
Battery Charger Required:	No - Non-Rechargeable Battery

Features

Key Features:

• Genuine Panasonic CR2 Photo Lithium battery
• 3.0-volt nominal output
• 850mAh rated capacity
• Primary lithium manganese dioxide (Li-MnO2) chemistry
• Compact CR2 cylindrical battery format
• IEC designation CR15H270 and ANSI designation 5046LC
• Measures 27.0mm in length and 15.6mm in diameter
• Button-top terminal configuration with raised positive and flat negative terminals
• Lightweight construction for portable electronic equipment
• Designed for compatible digital and film cameras
• Suitable for compatible photographic equipment and camera accessories
• High-drain capability for demanding photographic applications
• Stable power delivery for compatible electronic devices
• Suitable for compatible portable lighting equipment
• Useful for selected security and monitoring devices
• Designed for compatible electronic instruments
• Reliable performance across an operating temperature range of -40 °C to +70 °C
• 10-year shelf life under appropriate storage conditions
• Low self-discharge characteristics for extended storage
• Ready to use without charging
• Non-rechargeable primary lithium battery
• Not interchangeable with rechargeable RCR2 lithium-ion batteries unless specifically approved by the device manufacturer
• Suitable for equipment requiring a primary 3V CR2 lithium battery
• Supplied as one Panasonic CR2 Photo Lithium 3 Volt Camera Battery

COMPATIBILITY

Common Applications:

• Compatible Digital Cameras Requiring CR2 Lithium Batteries
• Compatible Film Cameras Requiring CR2 Batteries
• Photographic Camera Equipment
• Compatible Camera Accessories
• Photographic Light Meters Supporting CR2 Batteries
• Compatible Camera Flash Accessories
• Portable Photographic Equipment
• Compatible LED Flashlights Designed for Primary CR2 Batteries
• Portable Lighting Equipment Requiring CR2 Lithium Cells
• Compatible Electronic Security Devices
• Selected Electronic Door Locks
• Compatible Alarm and Monitoring Equipment
• Compatible Electronic Measuring Instruments
• Specialized Portable Electronic Equipment
• Compatible Medical Electronic Equipment
• Compatible Industrial Electronic Instruments
• Other Devices Specifically Designed for Primary 3V CR2 Lithium Batteries

Also Known As / Replaces:

• CR2
• CR-2
• Panasonic CR2
• Panasonic CR-2
• Panasonic Photo Lithium CR2
• CR15H270
• 5046LC
• 3V CR2 Lithium Battery
• CR2 Photo Battery
• CR2 Camera Battery
• CR2 Lithium Manganese Dioxide Battery
• Primary CR2 Lithium Battery
• Other Compatible Primary 3V CR2 Lithium Batteries with Matching Electrical and Physical Specifications

Important Compatibility Note:

• BATTERY CHEMISTRY: This battery uses primary, non-rechargeable lithium manganese dioxide (Li-MnO2) chemistry.
• BATTERY FORMAT: This battery uses the CR2 cylindrical battery format.
• MODEL NUMBER: CR2.
• IEC / ANSI DESIGNATIONS: IEC CR15H270 / ANSI 5046LC.
• VOLTAGE: This battery operates at 3.0 V.
• CAPACITY: This battery is rated at 850mAh (0.85Ah).
• DIMENSIONS: This battery measures 27.0 × 15.6 mm (1.06 × 0.61 in), length × diameter.
• TERMINAL: This battery features a button-top terminal configuration with a raised positive terminal and a flat negative terminal.
• WEIGHT: This battery weighs 11.0 g (0.39 oz).
• CONTINUOUS DRAIN: Panasonic specifies a continuous drain of 20mA under its reference test conditions.
• OPERATING TEMPERATURE: Panasonic specifies an operating temperature range of -40 °C to +70 °C. Consult Panasonic for applications near the extremes of this range.
• SHELF LIFE: This battery offers a shelf life of 10 years under appropriate storage conditions.
• NON-RECHARGEABLE: This is a primary lithium battery and must never be recharged.
• Do not place this battery in a lithium-ion, NiMH, NiCd, or other rechargeable battery charger.
• DEVICE COMPATIBILITY: Use this battery only in equipment designed to operate with primary 3V CR2 lithium batteries.
• Confirm that the equipment manufacturer specifies CR2 or a compatible primary lithium battery designation.
• RECHARGEABLE BATTERY WARNING: Rechargeable RCR2 lithium-ion batteries may have higher operating voltages and different electrical characteristics. Do not substitute rechargeable RCR2 batteries unless the equipment manufacturer specifically approves them.
• Do not assume that batteries with similar physical dimensions have identical chemistry, voltage, or discharge characteristics.
• CAMERA COMPATIBILITY: Confirm that the camera manufacturer specifies a primary CR2 lithium battery before installation.
• FLASHLIGHT COMPATIBILITY: Use only in flashlights designed to accept primary 3V CR2 lithium batteries.
• PHYSICAL COMPATIBILITY: Confirm that the battery fits the intended compartment and that the positive and negative terminals make proper contact.
• Do not substitute batteries with different voltage ratings, physical dimensions, or terminal configurations unless specifically approved by the device manufacturer.
• Do not mix lithium batteries with alkaline, rechargeable lithium-ion, or other battery chemistries in the same equipment.
• When using multiple batteries in one device, use batteries of the same approved type, manufacturer, and similar condition.
• Do not mix new batteries with partially discharged or used batteries.
• Actual battery operating life depends on equipment power consumption, operating conditions, storage conditions, and usage patterns.
• Always observe the correct positive (+) and negative (-) polarity during installation.
• Do not short-circuit, crush, puncture, disassemble, overheat, or expose the battery to fire.
• Do not attempt to solder directly to the battery terminals or casing.
• Do not use batteries that are damaged, leaking, deformed, or showing signs of excessive heat.
• Stop using the battery immediately if it becomes unusually hot, emits an unusual odor, or shows signs of damage.
• Keep batteries away from children and pets.
• Store unused batteries in a cool, dry location away from direct sunlight, excessive heat, and conductive metal objects.
• Protect battery terminals against accidental short circuits during storage and transportation.
• Dispose of used primary lithium batteries according to applicable local battery recycling and waste disposal regulations. Do not attempt to recharge or reuse depleted primary lithium batteries.

Package Includes:

• 1 × Panasonic CR2 Photo Lithium 3 Volt Camera Battery
• Total Quantity: 1 Battery
• Non-Rechargeable Battery - Charger Not Required
