ER14250 (LS14250) 1/2 AA 3.6 Volt Primary Lithium Battery (1200 mAh)

ER14250 (LS14250) 1/2 AA 3.6 Volt Primary Lithium Battery (1200 mAh)

SKU: 64745

Power Portable

$7.99
(No reviews yet) Write a Review
Adding to cart… The item has been added

Compatible Products

Qty. Price
Buy 1 - 8 $and pay only 7.99 each
Buy 9 - 21 $and pay only 7.89 each
Buy 22 - 42 $and pay only 7.69 each
Buy 43 - 118 $and pay only 7.29 each
Buy 119 - 339 $and pay only 6.59 each
Buy 340 or above call for pricing
Description

Specifications

  • Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
  • Nominal Capacity: 1200 mAh
  • Open Circuit Voltage: 3.66 Volt (at +20C +68F)
  • Nominal Voltage: 3.6 Volt (at 1mA +20C +68F)
  • Storage Temperature: +30C +86 F max (recommended)
  • Brand: Power Portable
  • Operating Temperature: -55C / +85C
  • Diameter (max): 14.5 mm (0.55")
  • Height (max): 25.25 mm (1")
  • Typical Weight: 12 g (0.4 oz)

Main applications

  • Backup power for circuit board
  • General purpose; camera/electronic cells
  • Medical equipment; military/aerospace
  • Telecommunications; water/electricity meter
  • LED lighting applications

Also known as

  • Tadiran TL-5902, TL-2150, TL-5151, TL-5902, TL-5101, TL-5111, Saft LS-14250, LS-14250c, Toshiba ER3v, Sonnenschein SL-350/S, SL-750/S, SL-150/S, pmd 14250, sx 14250, tt 14250, AMD 14250, tx 14250, ca 14250, alpha 14250, km 14250, BM 14250, IP 14250, ex 14250, qm 14250, gx 14250, ww 14250, dx 14250, sm 14250, bk 14250

Warning

  • This battery is not rechargeable. Do not try to recharge.
  • The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
  • Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need

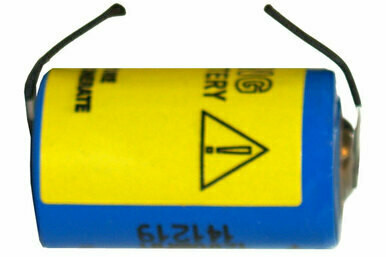

  • Soldering the tab should be finished in few seconds
  • Do not use if the battery casing was mangled
  •
  • The manufactured date appears on the battery. The battery has a shelf life of 7 - 10 years.

ER14250 (LS14250) 1/2 AA 3.6 VOLT PRIMARY LITHIUM BATTERY (1200 MAH)


The ER14250 (LS14250) battery is a reliable and long-lasting power source designed for various electronic devices. With its advanced lithium thionyl chloride (Li-SOCl2) chemistry, this battery provides high energy density and stable voltage output, making it suitable for a wide range of applications.



Key Features:

High Capacity: With a nominal capacity of 1200 mAh, the ER14250 battery delivers ample power to support your devices for extended periods, reducing the need for frequent replacements and downtime.
Stable Voltage: The battery maintains a stable voltage of 3.6 volts throughout its discharge cycle, ensuring consistent performance and reliable operation in a variety of conditions.
Wide Operating Temperature Range: Designed to withstand extreme temperatures, the ER14250 battery can operate reliably in temperatures ranging from -55°C to +85°C, making it suitable for use in diverse environments.
Compact and Lightweight: With a compact size, a diameter of 14.5mm (0.55 inches), and a height of 25.25mm (1 inch), this battery is portable and easy to install in various electronic devices. It weighs just 12g (0.4 oz), minimizing added bulk.
Versatile Applications: The ER14250 battery is suitable for a wide range of applications, including backup power for circuit boards, general-purpose electronics, medical equipment, military and aerospace devices, telecommunications equipment, water and electricity meters, and LED lighting applications.


Specifications:

Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
Nominal Capacity: 1200 mAh
Open Circuit Voltage: 3.66 Volt (at +20°C / +68°F)
Nominal Voltage: 3.6 Volt (at 1mA +20°C / +68°F)
Storage Temperature: +30°C to +86°F (recommended)
Operating Temperature: -55°C to +85°C
Diameter (max): 14.5 mm (0.55 inches)
Height (max): 25.25 mm (1 inch)
Typical Weight: 12 g (0.4 oz)
Brand: Power Portable


Compatible Models:

Tadiran: TL-5902, TL-2150, TL-5151, TL-5902, TL-5101, TL-5111
Saft: LS-14250, LS-14250c
Toshiba: ER3v
Sonnenschein: SL-350/S, SL-750/S, SL-150/S
Others: pmd 14250, sx 14250, tt 14250, AMD 14250, tx 14250, ca 14250, alpha 14250, km 14250, BM 14250, IP 14250, ex 14250, qm 14250, gx 14250, ww 14250, dx 14250, sm 14250, bk 14250


Trust the ER14250 (LS14250) battery to deliver reliable power for your electronic devices, ensuring smooth operation and extended battery life.
