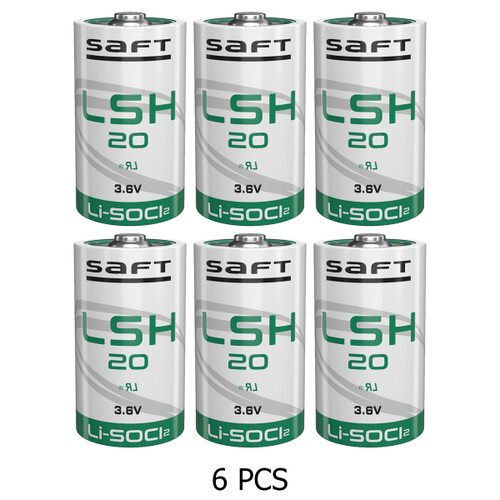

Saft LSH20 3.6 Volt D 13000 mAh Lithium Battery

SKU: 70860

SAFT

$42.99
(No reviews yet) Write a Review
Adding to cart… The item has been added
Description

Specifications

  • Voltage: 3.6 Volt
  • Capacity: 13 Ah
  • Size: D
  • Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
  • Brand: Saft
  • Termination Style: Button Top
  • Shelf Life: 10+ Years
  • Maximum Recomended Continuous Current: 1.8 Amp
  • Maximum Pulse Current Capability: 4 Amp
  • Diameter (max): 33 mm (1.3 in)
  • Height (max): 61.5 mm (2.4 in)
  • Typical Weight: 100 g (3.5 oz)

Key Features

  • High drain battery with pulse capability
  • Some of the highest nominal capacities on the market today
  • Excellent reliability over extended operating life
  • Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
  • Low self-discharge rate (less than 3% after 1 year of storage at + 20°C)
  • Excellent resistance to humid environments
  • Low magnetic signature
  • Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
  • Less than 1% capacity loss during storage at ambient temperature before use of the highest nominal capacities on the market today
  • Excellent reliability over extended operating life
  • Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
  • Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
  • Excellent resistance to humid environments
  • Low magnetic signature
  • Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
  • Less than 1% capacity loss during storage at ambient temperature before use

Compatible With

  • ER34615
  • ER34615H
  • ER34615C
  • ER34615M
  • ER32L615
  • Saft LS33600

️  Warning

  • This battery is not rechargeable. Do not try to recharge.
  • The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
  • Don't use different models of battery in series.
  • Soldering the tab should be finished in few seconds.
  • Do not use if the battery casing was mangled

SAFT LSH20 3.6 VOLT D 13000 MAH LITHIUM BATTERY


Unleash Power and Reliability with Saft LSH20 3.6 Volt D 13000 mAh Lithium Battery



When it comes to powering your devices with unwavering performance and long-lasting reliability, the Saft LSH20 3.6 Volt D 13000 mAh Lithium Battery stands as a pinnacle of excellence. Crafted by Saft, a renowned name in battery technology, this battery offers exceptional specifications and key features that make it the go-to choice for various applications.



Specifications

Voltage: 3.6 Volt
Capacity: 13000 mAh
Size: D
Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
Brand: Saft
Termination Style: Button Top
Shelf Life: 10+ Years
Maximum Recommended Continuous Current: 1.8 Amp
Maximum Pulse Current Capability: 4 Amp
Dimensions:
Diameter (max): 33 mm (1.3 in)
Height (max): 61.5 mm (2.4 in)
Weight: 100 g (3.5 oz)


Key Features

High Drain Battery with Pulse Capability: Designed to deliver power efficiently even during high drain applications.
Exceptional Nominal Capacities: Offers one of the highest nominal capacities available in the market today.
Reliability Over Extended Operating Life: Built to withstand rigorous usage and provide reliable performance over an extended lifespan.
Wide Operating Temperature Range: Functions seamlessly across a broad temperature spectrum from -60°C to +85°C (-76°F to +185°F).
Low Self-Discharge Rate: Maintains its charge with less than 3% self-discharge after 1 year of storage at +20°C.
Excellent Resistance to Humid Environments: Suitable for use in environments with high humidity levels.
Non-Flammable Inorganic Electrolyte: Ensures safety during operation with a non-flammable electrolyte.
Minimal Capacity Loss During Storage: Retains its capacity with less than 1% loss during storage at ambient temperature before use.


Compatible With

ER34615
ER34615H
ER34615C
ER34615M
ER32L615
Saft LS33600

Whether you're powering industrial equipment, medical devices, or any other application requiring reliable and long-lasting energy, the Saft LSH20 battery is the perfect choice. With its high capacity, robust construction, and exceptional reliability, it ensures uninterrupted performance even in the most demanding environments.
