Description

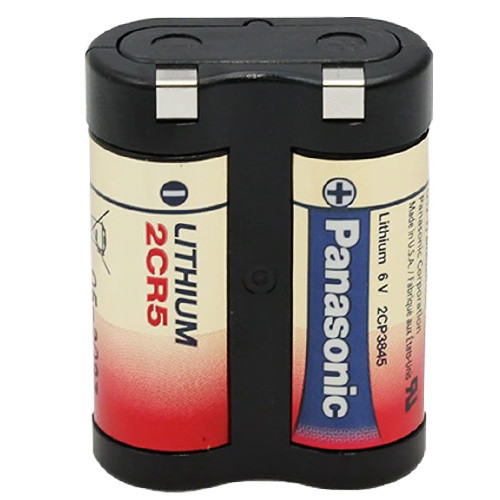

The 2CR5 Panasonic 6 Volt Lithium (245, DL245, EL2CR5) Battery provides dependable, non-rechargeable power for compatible photographic and electronic equipment requiring a standard 2CR5 primary lithium battery. Manufactured under the Panasonic brand, this battery features primary lithium manganese dioxide (Li-MnO2) chemistry in a two-cell pack, delivers a nominal voltage of 6.0 volts, and has a capacity of 1550 mAh. Its distinctive rectangular, dual-cylinder battery format is designed for compatible film cameras, photographic equipment, electronic flash accessories, portable lighting devices, and other specialized equipment requiring a 6V 2CR5 lithium battery.
Designed in the standard 2CR5 battery format, the Panasonic lithium battery measures 45.0 × 34.0 × 17.0 mm (1.77 × 1.34 × 0.67 in), height × width × depth, and weighs 38.0 g (1.34 oz). Unlike conventional cylindrical batteries with terminals at opposite ends, the 2CR5 features two recessed electrical contacts arranged on one end of its molded battery housing. This specialized keyed 2CR5 pack terminal configuration ensures proper positioning and electrical contact in compatible 2CR5 battery compartments. Panasonic's lithium manganese dioxide chemistry supports high-current pulse applications, making this battery particularly suitable for compatible photographic equipment and electronic devices requiring intermittent bursts of power.
The Panasonic 2CR5 6V Lithium Battery is a primary, non-rechargeable battery and must never be placed in a battery charger. The 2CR5 format is also associated with compatible replacement designations such as 245, DL245, and EL2CR5, provided the replacement battery has matching electrical and physical specifications. It is not interchangeable with CR-P2, CR123A, or other lithium battery formats solely because they have similar voltages or chemistry. Always verify the equipment manufacturer's specified battery type, voltage, dimensions, terminal arrangement, and approved replacement requirements before installation. Each purchase includes one Panasonic 2CR5 6 Volt Lithium Battery.
|
|
Specifications
| Brand: |
Panasonic |
| Product Name: |
2CR5 Panasonic 6 Volt Lithium (245, DL245, EL2CR5) Battery |
| Battery Model: |
2CR5 |
| Battery Size: |
2CR5 |
| IEC Designation: |
2CR5 |
| ANSI Designation: |
5032LC |
| Battery Type: |
Primary Lithium Battery |
| Chemistry: |
Lithium Manganese Dioxide (Li-MnO2), primary, two-cell pack |
| Voltage: |
6.0 V nominal |
| Capacity: |
1550 mAh |
| Continuous Standard Drain: |
20 mA (datasheet reference condition) |
| Battery Format: |
2CR5 Rectangular Dual-Cylinder Battery |
| Dimensions: |
45.0 × 34.0 × 17.0 mm (1.77 × 1.34 × 0.67 in), height × width × depth |
| Weight: |
38.0 g (1.34 oz) |
| Terminal: |
Keyed 2CR5 pack terminals |
| Terminal Configuration: |
Two Recessed Electrical Contacts on One End |
| Operating Temperature: |
-40 °C to +70 °C |
| Rechargeable: |
No |
| Charging: |
Do Not Recharge |
| Primary Applications: |
Compatible Film Cameras, Photographic Equipment, Electronic Flash Accessories, Portable Lighting, Specialized Electronic Equipment |
| Compatible Replacements: |
245, DL245, EL2CR5 |
| Battery Quantity: |
1 Battery |
| Packaging: |
Single Panasonic 2CR5 6V Lithium Battery |
| Battery Charger Included: |
No |
|
|
Features
Key Features:
- Panasonic 2CR5 6 Volt Lithium Battery
- Battery model 2CR5
- 6.0-volt nominal output
- 1550 mAh capacity
- Primary lithium manganese dioxide (Li-MnO2) chemistry in a two-cell pack
- Standard 2CR5 rectangular dual-cylinder battery format
- IEC designation 2CR5
- ANSI designation 5032LC
- Non-rechargeable primary lithium battery
- Two recessed electrical contacts on one end
- Specialized keyed 2CR5 pack terminals for compatible battery compartments
- Dimensions of 45.0 × 34.0 × 17.0 mm (1.77 × 1.34 × 0.67 in), height × width × depth
- Battery weight of 38.0 g (1.34 oz)
- Continuous standard drain reference of 20 mA
- Operating temperature range of -40 °C to +70 °C
- Designed for compatible 6V 2CR5 lithium battery applications
- Suitable for compatible film cameras
- Designed for compatible photographic equipment
- Useful for compatible autofocus film cameras
- Suitable for compatible camera motor-drive systems
- Designed for compatible photographic flash equipment
- Useful for compatible camera accessories
- Suitable for compatible professional photographic equipment
- Designed for compatible portable lighting equipment
- Useful for compatible specialty flashlights
- Suitable for compatible electronic security equipment
- Designed for compatible electronic instruments
- Useful for compatible specialized portable electronics
- High-current pulse discharge capability for suitable applications
- Lithium manganese dioxide chemistry supports stable operating voltage during discharge
- Compact dual-cylinder design within a molded rectangular housing
- Recessed contacts help position the battery correctly in compatible compartments
- Ready to use without charging
- Primary lithium chemistry eliminates the need for a battery charger
- Not rechargeable; do not place in a battery charger
- Compatible replacements: 245, DL245, EL2CR5
- Confirm equipment voltage and chemistry requirements before installation
- Terminal configuration must match the equipment requirements
- Not interchangeable with CR-P2 batteries despite the same nominal voltage
- Not interchangeable with individual CR123A batteries
- Do not substitute rechargeable batteries unless specifically approved by the equipment manufacturer
- Actual battery operating time depends on equipment power consumption and operating conditions
- Suitable for compatible photographic, lighting, and specialized electronic applications
- Supplied as one Panasonic 2CR5 6V primary lithium battery
|
|
COMPATIBILITY
Common Applications:
- Compatible 2CR5 Lithium Battery Devices
- Compatible 6V 2CR5 Battery Compartments
- Film Cameras Requiring 2CR5 Batteries
- Compatible 35mm Film Cameras
- Compatible Autofocus Film Cameras
- Compatible Single-Lens Reflex Film Cameras
- Compatible Compact Film Cameras
- Compatible Photographic Camera Equipment
- Compatible Camera Motor-Drive Systems
- Compatible Photographic Flash Equipment
- Compatible Camera Flash Accessories
- Compatible Professional Photographic Equipment
- Compatible Portable Lighting Equipment
- Compatible Specialty Flashlights
- Compatible Security Equipment
- Compatible Electronic Monitoring Equipment
- Compatible Portable Electronic Instruments
- Compatible Specialized Electronic Devices
- Compatible Battery-Powered Photographic Accessories
- Other Devices Specifically Approved for 6V Primary 2CR5 Lithium Batteries
Also Known As / Replaces:
- Panasonic 2CR5
- Panasonic 2CR5 6V Lithium Battery
- Panasonic 2CR-5
- 2CR5
- 2CR-5
- IEC 2CR5
- 245 (Compatible Replacement)
- DL245 (Compatible Replacement)
- EL2CR5 (Compatible Replacement)
- 2CR5 6V Lithium Battery
- 2CR-5 6V Lithium Battery
- 2CR5 Primary Lithium Battery
- 2CR5 Lithium Manganese Dioxide Battery
- 6V 2CR5 Camera Battery
- 6 Volt 2CR5 Photo Lithium Battery
- 2CR5 Photographic Lithium Battery
- 2CR5 Film Camera Battery
- 2CR5 Rectangular Lithium Battery
- 2CR5 Dual-Cylinder Lithium Battery
- Standard 2CR5 6V Primary Lithium Battery
- Other Compatible 2CR5 Primary Lithium Batteries with Matching Physical and Electrical Specifications
Important Compatibility Note:
- BRAND: Panasonic.
- BATTERY MODEL: 2CR5.
- BATTERY SIZE: 2CR5 rectangular dual-cylinder battery format.
- IEC DESIGNATION: 2CR5.
- ANSI DESIGNATION: 5032LC.
- BATTERY CHEMISTRY: Lithium Manganese Dioxide (Li-MnO2), primary, two-cell pack.
- VOLTAGE: 6.0 V nominal.
- CAPACITY: 1550 mAh.
- CONTINUOUS STANDARD DRAIN: 20 mA under the manufacturer's reference test conditions.
- DIMENSIONS: 45.0 × 34.0 × 17.0 mm (1.77 × 1.34 × 0.67 in), height × width × depth.
- WEIGHT: 38.0 g (1.34 oz).
- TERMINAL: Keyed 2CR5 pack terminals.
- TERMINAL CONFIGURATION: Two recessed electrical contacts located on one end of the battery housing.
- OPERATING TEMPERATURE: -40 °C to +70 °C.
- BATTERY QUANTITY: 1 battery.
- RECHARGEABLE: No. This is a primary lithium battery and is not designed to be recharged.
- CHARGING: Never attempt to recharge this battery.
- Do not place this battery in any rechargeable battery charger.
- DEVICE COMPATIBILITY: Use only in equipment approved for 6V primary 2CR5 lithium batteries.
- VOLTAGE COMPATIBILITY: Confirm that the equipment requires a nominal 6.0V primary lithium battery.
- BATTERY FORMAT COMPATIBILITY: The 2CR5 has a distinctive rectangular dual-cylinder housing and must match the intended battery compartment.
- COMPATIBLE REPLACEMENTS: 245, DL245, EL2CR5.
- Compatible replacement designations do not eliminate the need to verify the device manufacturer's approved battery specifications.
- CR-P2 WARNING: A CR-P2 battery is also a 6V primary lithium battery but has a different physical configuration and is not a direct replacement for a 2CR5.
- CR123A WARNING: Individual CR123A batteries are a different battery format and must not be substituted for a 2CR5 unless the equipment manufacturer specifically provides an approved arrangement.
- RECHARGEABLE BATTERY WARNING: Do not substitute rechargeable lithium-ion battery packs or other rechargeable battery formats unless explicitly approved by the equipment manufacturer.
- Do not assume batteries with the same nominal voltage are physically or electrically interchangeable.
- BATTERY CHEMISTRY COMPATIBILITY: Confirm that the equipment manufacturer approves primary lithium manganese dioxide (Li-MnO2) chemistry.
- PHYSICAL COMPATIBILITY: Confirm that the battery fits the intended compartment and that the recessed terminals make proper electrical contact.
- TERMINAL COMPATIBILITY: Verify that the battery's recessed contact arrangement matches the equipment's electrical contacts.
- BATTERY ORIENTATION: Install the battery only in the orientation specified by the equipment manufacturer.
- BATTERY REPLACEMENT: Match the equipment manufacturer's specified battery chemistry, nominal voltage, size, and terminal configuration.
- Do not substitute batteries with different voltages or incompatible chemistries unless specifically approved by the equipment manufacturer.
- Do not mix primary lithium batteries with rechargeable lithium-ion, alkaline, zinc-carbon, or other battery chemistries in the same equipment.
- When multiple batteries are required, use batteries of the same approved chemistry, compatible specifications, and similar condition.
- Do not mix new and used batteries in the same device.
- Replace all batteries in a multi-battery device together unless the equipment manufacturer specifies otherwise.
- Actual battery operating time depends on equipment power consumption, operating temperature, and application conditions.
- Capacity and discharge performance may vary with load, temperature, and equipment operating conditions.
- Always observe the correct positive (+) and negative (-) polarity during installation.
- Do not short-circuit the recessed battery contacts or allow conductive objects to bridge the terminals.
- Do not crush, puncture, disassemble, overheat, or expose the battery to fire.
- Do not attempt to solder directly to the battery contacts or housing.
- Do not use batteries that are damaged, leaking, deformed, or showing signs of excessive heat.
- Stop using the battery immediately if it becomes unusually hot, emits an unusual odor, or shows signs of damage.
- Keep batteries away from children and pets.
- Store unused batteries in a cool, dry location away from direct sunlight, excessive heat, and conductive metal objects.
- Remove batteries from equipment that will not be used for an extended period, following the equipment manufacturer's instructions.
- Protect the recessed battery contacts against accidental short circuits during storage and transportation.
- Dispose of or recycle used lithium batteries in accordance with applicable local regulations and available battery collection programs.
Package Includes:
- 1 × Panasonic 2CR5 6 Volt Lithium Battery
- Total Quantity: 1 Battery
- Primary Lithium Battery — Non-Rechargeable
- Battery Charger Not Included
|
