Description

The CR1632 Renata 3 Volt Lithium Coin Cell Battery (2 Cells in a Card) provides dependable, long-lasting power for compact electronic devices requiring CR1632 lithium coin cells. Manufactured by Renata, these batteries use lithium manganese dioxide (Li/MnO2) chemistry to deliver a stable nominal voltage of 3 volts with a rated capacity of approximately 137mAh.

Each Renata CR1632 measures 16.0mm in diameter by 3.2mm in height and weighs approximately 1.8g. The compact coin cell design and low self-discharge characteristics make the CR1632 well suited for automotive key fobs, remote keyless entry systems, medical devices, security equipment, wireless sensors, calculators, memory backup systems, remote controls, and other compatible electronics. This package contains one card with 2 genuine Renata CR1632 3V lithium coin cell batteries.

Specifications

Brand:	Renata
Model:	CR1632
Battery Size:	CR1632
Battery Type:	Primary Lithium Coin Cell
Chemistry:	Lithium Manganese Dioxide (Li/MnO2)
Nominal Voltage:	3 Volt
Rated Capacity:	Approximately 137 mAh
Nominal Energy:	Approximately 0.41 Wh
Standard Discharge Current:	0.2 mA
Maximum Continuous Discharge Current:	Approximately 1.5 mA
Diameter:	16.0 mm (0.63")
Height:	3.2 mm (0.13")
Typical Weight:	Approximately 1.8 g (0.06 oz.) per Battery
Operating Temperature:	-40°C to +85°C (-40°F to +185°F)
Self-Discharge:	Less Than 1% per Year at 23°C
Cell Format:	Lithium Coin Cell
Terminal Style:	Standard Coin Cell Pressure Contact
Rechargeable:	No
Batteries Per Card:	2 Batteries
Total Battery Quantity:	2 Batteries
Packaging:	1 Card of 2 Batteries

Features

Key Features:

• Includes 2 genuine Renata CR1632 3V lithium coin cell batteries
• Conveniently packaged on one card containing 2 batteries
• Approximately 137mAh rated capacity per battery
• Approximately 0.41Wh nominal energy per battery
• Lithium manganese dioxide chemistry provides dependable 3-volt performance
• Stable voltage output for compatible compact electronic devices
• Standard discharge current of 0.2mA
• Maximum continuous discharge current of approximately 1.5mA
• Low self-discharge rate of less than 1% per year at 23°C
• Wide operating temperature range from -40°C to +85°C
• Compact 16.0mm diameter × 3.2mm height coin cell design
• Lightweight construction at approximately 1.8g per battery
• Excellent storage characteristics for standby and occasional-use electronics
• Suitable for automotive electronics, medical devices, sensors, security equipment, remote controls, and other compact electronics
• Non-rechargeable primary lithium batteries

COMPATIBILITY

Common Applications:

• Automotive Key Fobs
• Remote Keyless Entry Systems
• Remote Controls
• Security & Alarm Equipment
• Wireless Sensors
• Medical & Monitoring Devices
• Calculators
• Electronic Thermometers
• Electronic Measuring Equipment
• Memory Backup Applications
• Clocks & Compact Electronics
• Small Electronic Toys & Games
• Other Equipment Designed for CR1632 3V Lithium Coin Cells

Also Known As / Replaces:

• CR1632
• CR-1632
• 1632
• DL1632
• ECR1632

Important Compatibility Note:

• Verify that your device specifically requires a CR1632 3V lithium coin cell before installation.
• A CR1632 battery measures approximately 16.0mm in diameter by 3.2mm thick. Other 3V coin cells may have different diameters or thicknesses and are not automatically interchangeable.
• Do not substitute CR1620, CR1616, CR2025, CR2032, or other coin cell sizes unless the equipment manufacturer specifically identifies them as compatible.
• Always confirm the battery designation, voltage, dimensions, and polarity specified by the device manufacturer.
• These Renata CR1632 batteries are non-rechargeable primary lithium cells. Do not attempt to recharge them.

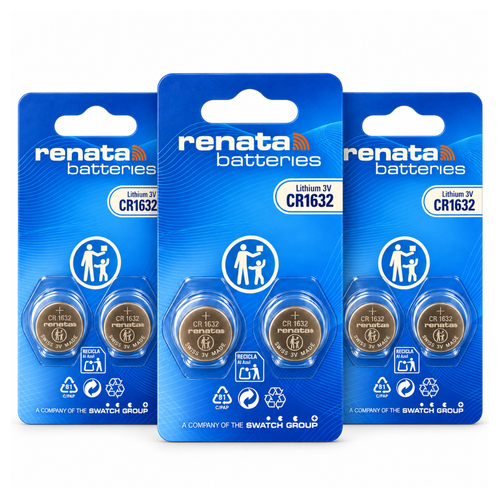

Package Includes:

• 2 × Renata CR1632 3 Volt Lithium Coin Cell Batteries
• 1 × Card Containing 2 Batteries
